mini small sheet metal cutting waterjet cutting machine super low price

  • 1 - 1 Sets
    $35,000.00
  • >=2 Sets
    $30,000.00
Model Number:
HEAD0606BB
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Video technical support
Place of Origin:
China
Brand Name:
HEAD
Condition:
New
Dimension(L*W*H):
as to machine
Certification:
CE ISO
Rated Power:
37HZ
Voltage:
380v
Year:
2019
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Key Selling Points:
Competitive Price
Weight (KG):
1450
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
Australia, Viet Nam, Mexico, Russia
Showroom Location:
Romania, Malaysia, Germany, Viet Nam, Mexico, Russia
Cutting material:
Metal .alloy Metal .aluminum
Cutting mode:
Cold Cutting
Pump type:
Water Jet Cutter Intensifier
Cutting thickness:
1-150mm Thickness
CNC Controller:
WEIHONG NC63A
Pressure:
380Mpa-420Mpa
Control accuracy:
0.01mm Waterjet Cutting Prices
Cutting Speed:
0--8000mm/min
Ball screw:
HIWIN
PLC:
Omron Japan
Supply Ability
Supply Ability:
15 Set/Sets per Month mini small sheet metal cutting waterjet cutting machine super lo
Packaging & Delivery
Packaging Details
mini small sheet metal cutting waterjet cutting machine super low price
1. Full film packaging machine;
2. Collision avoidance;
3. Free fumigation plywood wooden box with metal straps.
4. Our wooden box was fumigated. No need for wood inspection, save transportation time.
Port
Dalian,China mini small sheet metal cutting waterjet cutting machine super low price
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

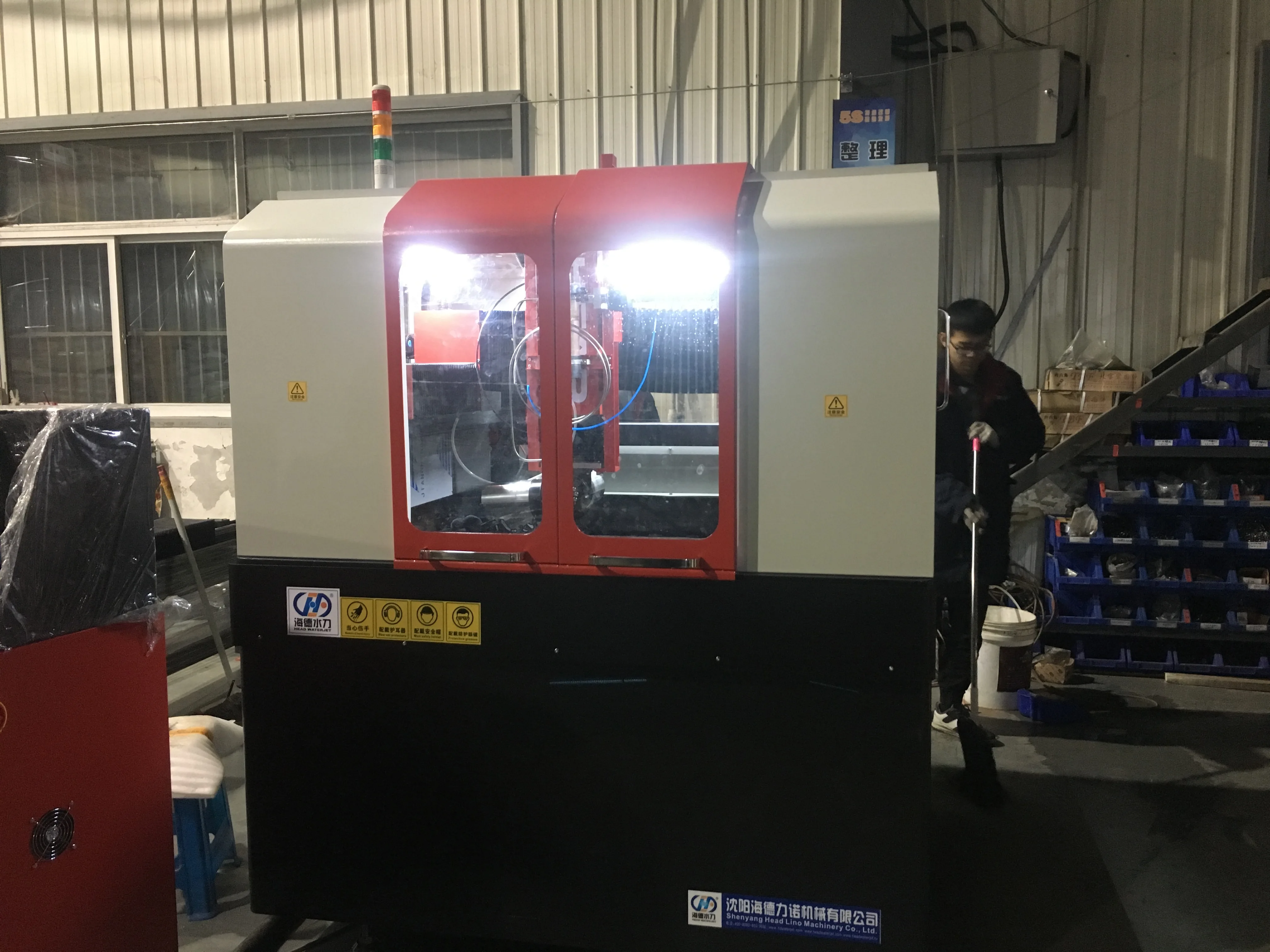

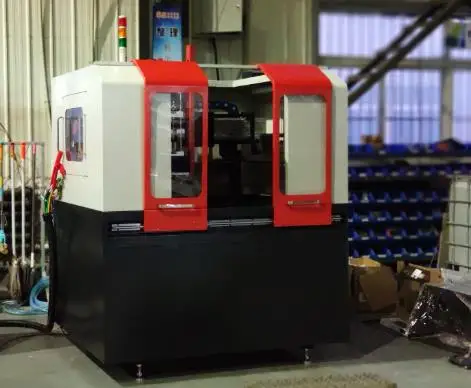

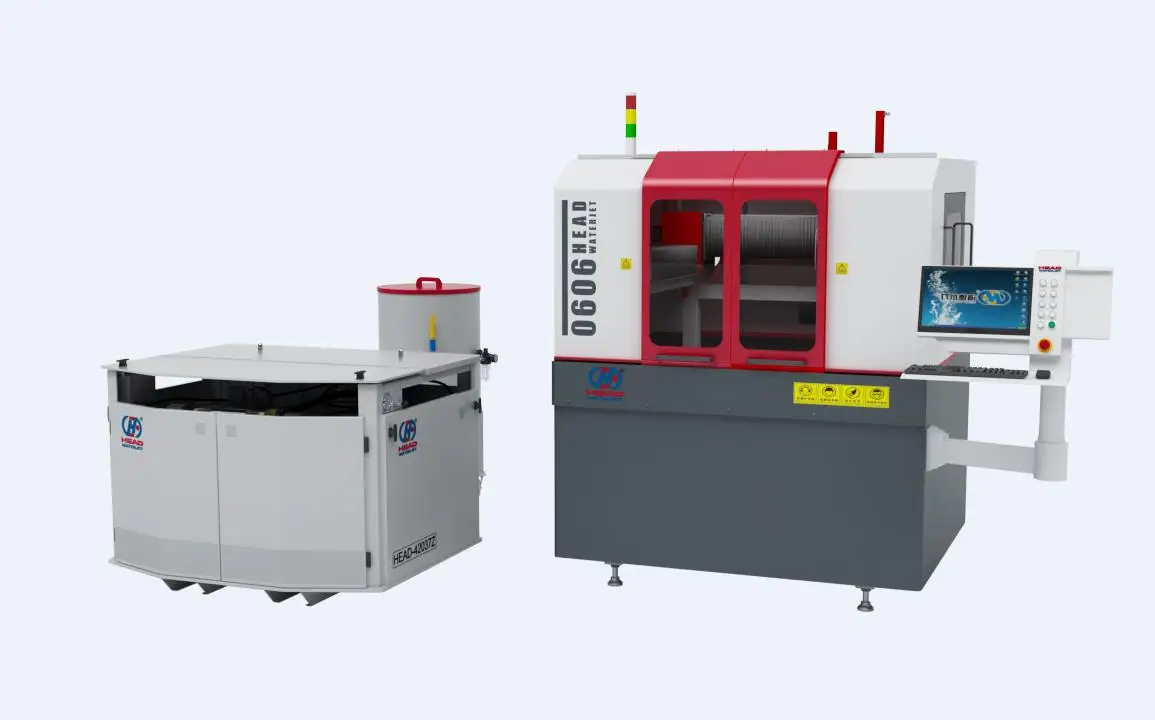

Characteristics of our waterjet cutting machine

1. Small size-small footprint, space saving site, 2. High accuracy——Using imported modules from Taiwan, the repeat positioning accuracy can reach ± 0.01mm / 300mm; walking and other heights ± 0.025mm / 300mm; walking parallelism ± 0.025mm / 300mm, 3. Full protection-safer operation, installed on the door, higher security level, stop immediately after opening the door, 4. Easy to move-a forklift carrying hole is installed at the bottom, which can be moved by a forklift. 5. Cutting stroke: 630mm × 630mm 6. Equipment weight (single cutting equipment): 1.5t

Features

• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.
• Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db
• Electrical wiring design and meet European EU standards

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
380-420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Drive type
Yaskawa Servo Drive
Max cutting heads
1-10 cutting heads (1 for standard machine)
Detailed Images

waterjet residual abrasive removal system

not affect normal waterjet cutting work The abrasive sand removal device can also work when the water jet cutting machine is working.put the sand suction nozzle into the waterjet tank, abrasive sand removal work can be carried out. At the same time it will not affect the completion of Desanding waterjets work properly

Traditional way to remove sand

Waterjet cutting machine stop running, expensive labor costs, low efficiency, it normally takes 2-3 days to complete

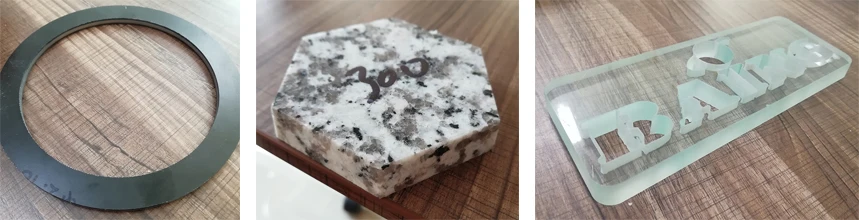

Cutting sample

Waterjet technology is very easy to use: the setting operations are straightforward. The main benefits for the customer are the cold cutting process and the increase in productivity thanks to a significant reduction in time and cost, mostly because no further processing is required. Waterjet solution allows you to cut any shape, size or material, a maximum thickness of 200 mm. By using the same tool and parameters during most operations, it is possible to easily cut different materials such as marble, granite, glass, ceramic, composite materials, metals, and alloys.

Related Products

Waterjet cutting machine for laminated glass

Small water jet cutting machine

Water jet ceramic tile stone cutting machine

About our company

>>>Brief Introduction Of HEAD waterjet company

HEAD water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning China, with more than 15 years full experience and a professional sales team.HEAD water jet, so cutting is no longer a problem!

Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

>>View of Company honor

Service & FAQ

>>>Try to Read This -------Our Service

1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.

Keep safety

Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.

Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.


why choose HEAD water jet

1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder

Packing & Delivery

Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.


Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
