Designed for The Stone Kitchen Counter Tops Saw & Water Jet Cutting Machine

  • 1 - 1 Sets
    $80,000.00
  • >=2 Sets
    $60,000.00
Model Number:

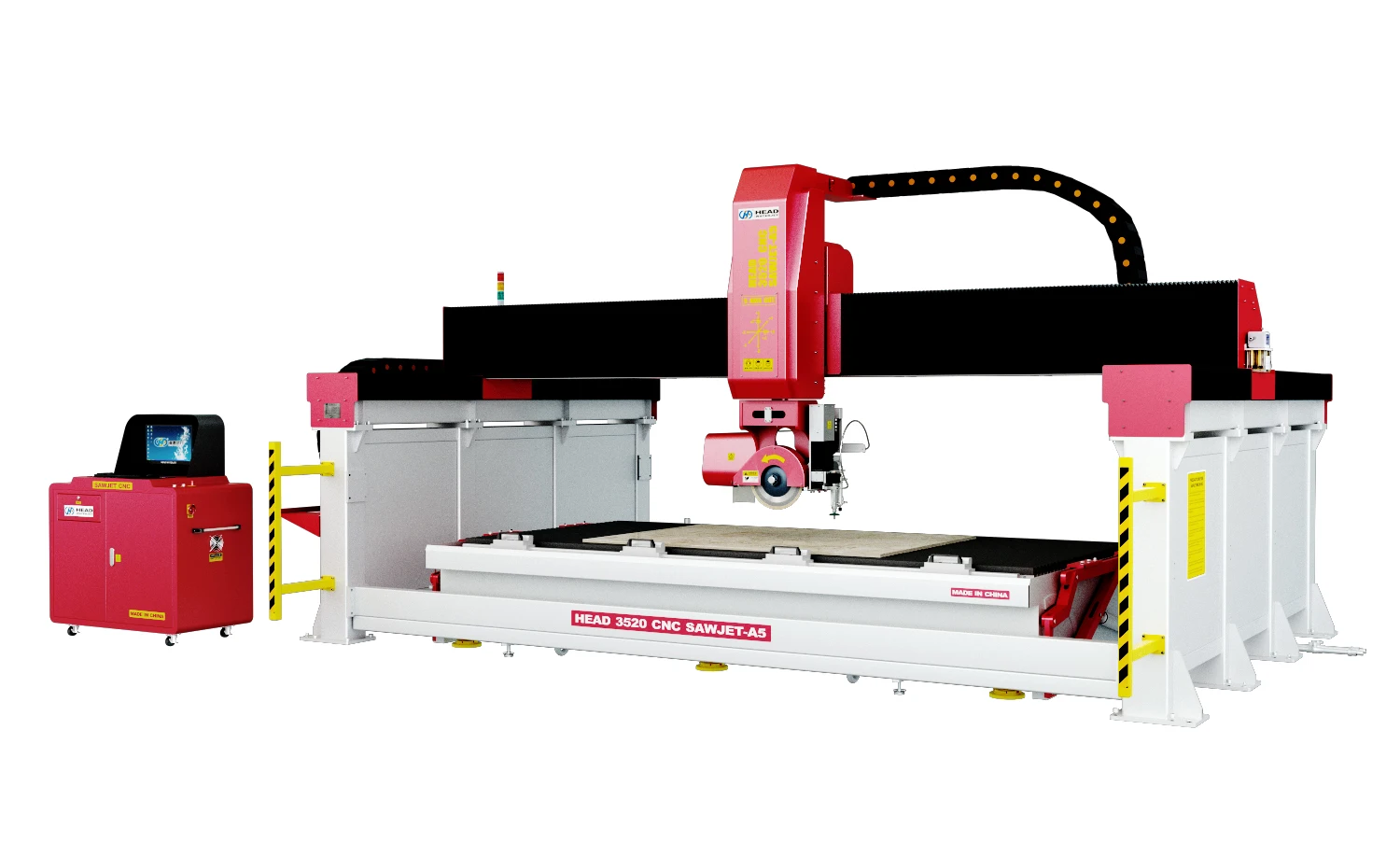

HEAD-3520 CNC SAWJET-A5
Working Area:
stone cutting
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Production Capacity:
high
Power(W):
15KW
Type:
Stone Cutting Machine
Certification:
CE/ISO/SGS
Applicable Industries:
Garment Shops, Building Material Shops, Machinery Repair Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Italy, Germany, Viet Nam, Australia, Morocco, Chile, Uzbekistan, Tajikistan
Showroom Location:
Turkey, Germany, Viet Nam, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Romania
Condition:
New
Use:
Granite
Place of Origin:
Liaoning, China
Brand Name:
HEAD
Voltage:
380V
Dimension(L*W*H):
as to model
Weight:
7800
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
High-accuracy
Total platform power:
33kw
Saw blade diameter:
400mm
Saw blade speed:
1440rpm
positioning accuracy:
±0.05/300mm
Saw blade cutting accuracy:
±0.5mm
Waterjet cutting accuracy:
±0.1mm
Maximum cutting thickness of saw blade:
50mm
X,Y-axis Max no-load running speed:
20000mm/min
X,Y axis Max cutting speed:
10000mm/min
Z axis Max running speed:
800mm/min
Supply Ability
Supply Ability:
15 Set/Sets per Month ceramic floor tiles making machine waterjet cutter
Packaging & Delivery
Packaging Details
Soft package or as your request in 20/40 feet container for ceramic floor tiles making machine waterjet cutter
Port
Dalian for ceramic floor tiles making machine waterjet cutter
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

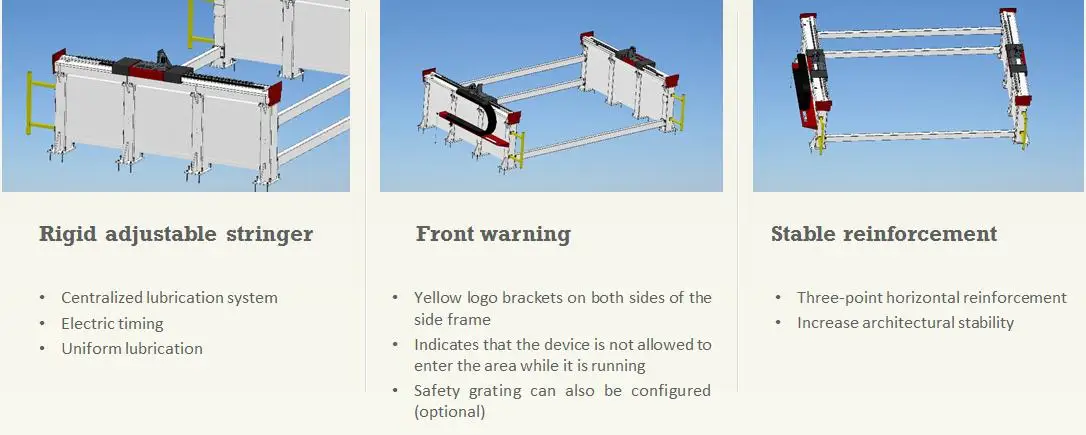

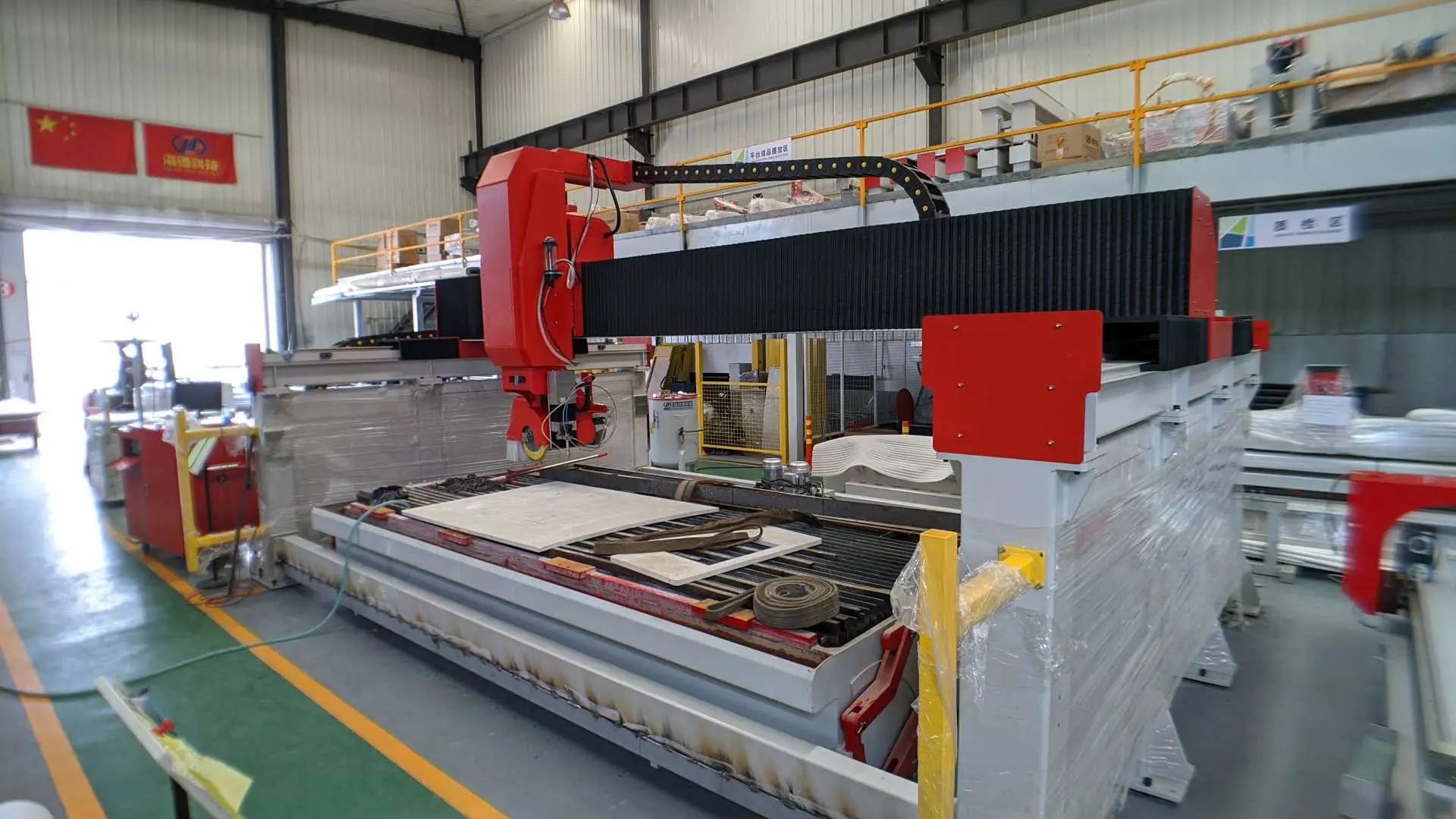

Detailed Images

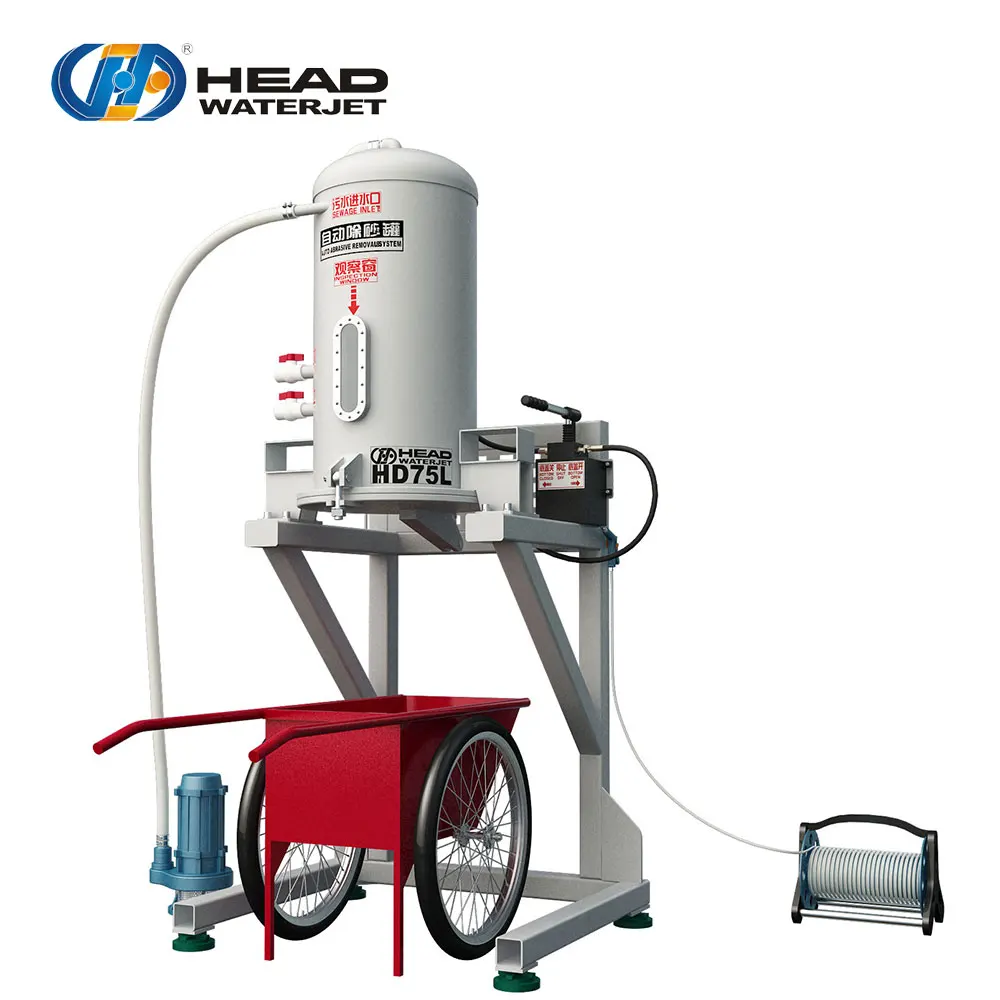

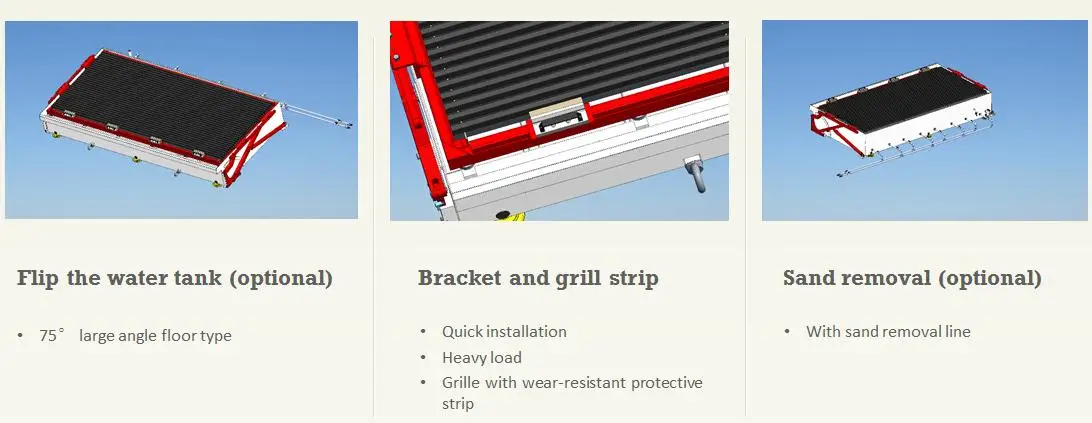

waterjet residual abrasive removal system

not affect normal waterjet cutting work The abrasive sand removal device can also work when the water jet cutting machine is working.put the sand suction nozzle into the waterjet tank, abrasive sand removal work can be carried out. At the same time it will not affect the completion of Desanding waterjets work properly

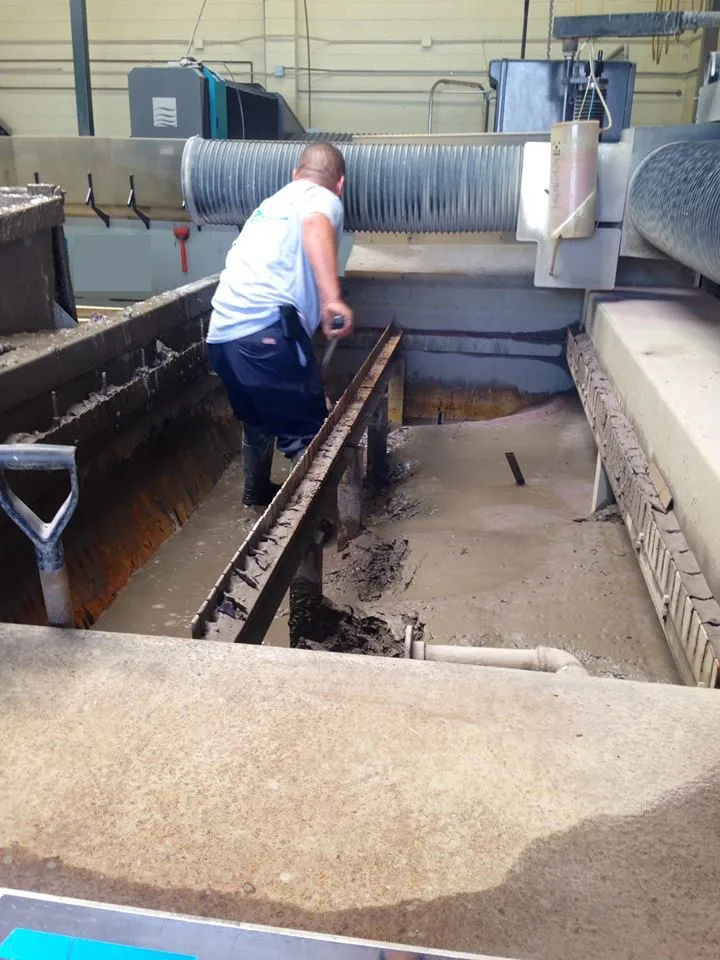

Traditional way to remove sand

Waterjet cutting machine stop running, expensive labor costs, low efficiency, it normally takes 2-3 days to complete

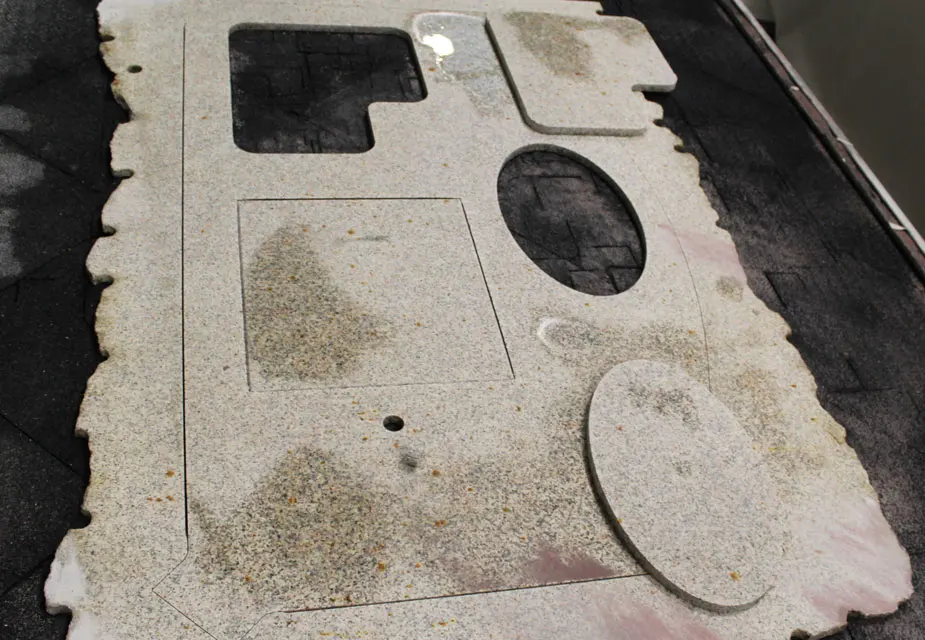

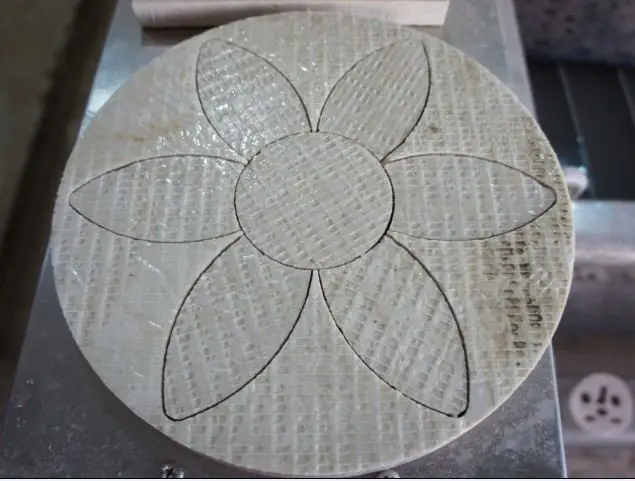

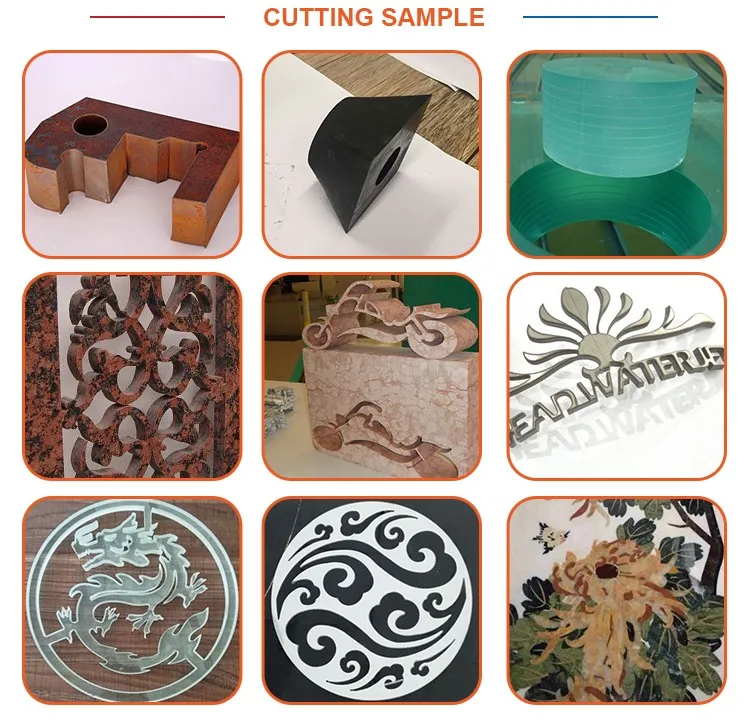

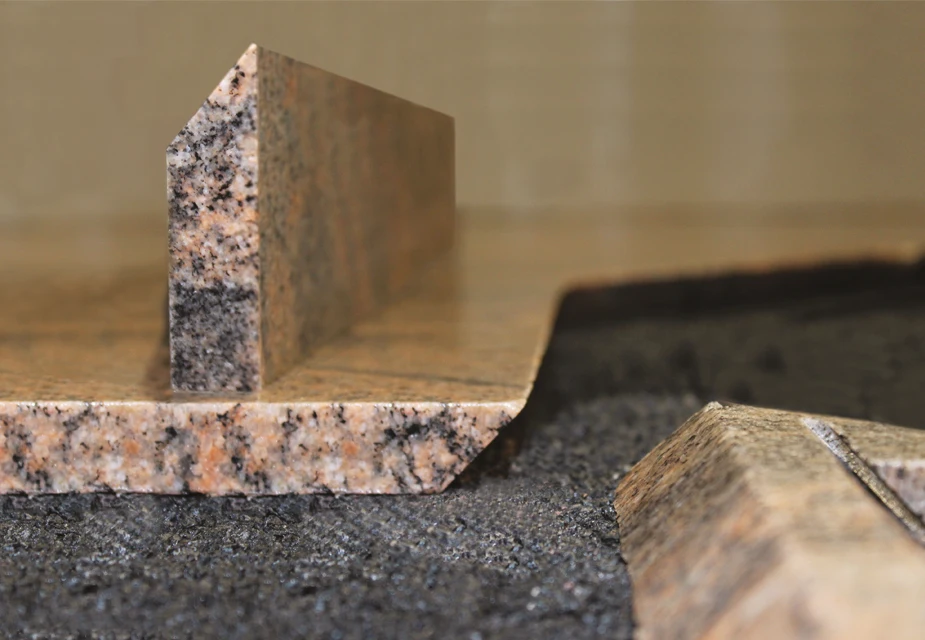

Cutting sample

Waterjet technology is very easy to use: the setting operations are straightforward. The main benefits for the customer are the cold cutting process and the increase in productivity thanks to a significant reduction in time and cost, mostly because no further processing is required. Waterjet solution allows you to cut any shape, size or material, a maximum thickness of 200 mm. By using the same tool and parameters during most operations, it is possible to easily cut different materials such as marble, granite, glass, ceramic, composite materials, metals, and alloys.

About our company

>>>Brief Introduction Of HEAD waterjet company

HEAD water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning China, with more than 15 years full experience and a professional sales team.HEAD water jet, so cutting is no longer a problem!

Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

>>View of Company honor

Service & FAQ

>>>Try to Read This -------Our Service

1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.

Keep safety

Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.

Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.


why choose HEAD water jet

1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder
