Big discount professional water tile cutters china manufacturer price

  • 1 - 1 Sets
    $36,000.00
  • >=2 Sets
    $35,400.00
Model Number:
HEAD2030BA/HEAD42037Z
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
high
Power(W):
37KW
Type:
CNC Router
Certification:
CE ISO
Condition:
New
Use:
quarry stone tile ceramic cutting
Place of Origin:
Liaoning, China
Brand Name:
HEAD
Voltage:
380V/50Hz
Dimension(L*W*H):
as to detail
Weight:
5000-6700Kg
After-sales Service Provided:
Engineers available to service machinery overseas
Max operating pressure:
420MPa
Continuous operating pressure:
370Mpa-390Mpa
Cutting accuracy:
0.1mm
Controlling accuracy:
0.01mm
Re-position accuracy:
0.02mm
Z-axis journey:
150mm
Max cutting thickness:
100mm
Max oil discharge:
206L/min
Max water discharge:
3.8L/min
Max nozzle diameter:
0.35mm
Warranty:
1 Year
Supply Ability
Supply Ability:
30 Set/Sets per Month Big discount professional water tile cutters china manufacturer
Packaging & Delivery
Packaging Details
Big discount professional water tile cutters china manufacturer price
1. Full film packaging machine;
2. Collision avoidance;
3. Free fumigation plywood wooden box with metal straps.
4. Our wooden box was fumigated. No need for wood inspection, save transportation time.
Port
Dalian Port Big discount professional water tile cutters china manufacturer price
Video Description
Product Description


Product description:

Keeping track of latest market development we are actively engaged in offering CNC Water Jet Cutting Machine. Widely used for cutting soft & hard materials, the offered jet cutting machine is good demand in the market for its high performance. In order to assure the quality, the complete range of jet cutting machine is checked on numerous parameters before the final delivery at the customer's end. The offered jet cutting machine is provided with different specifications at affordable price

Features:

• 50 HP High  420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.
• Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting heads
1-10 cutting heads (1 for standard machine)
Products Show

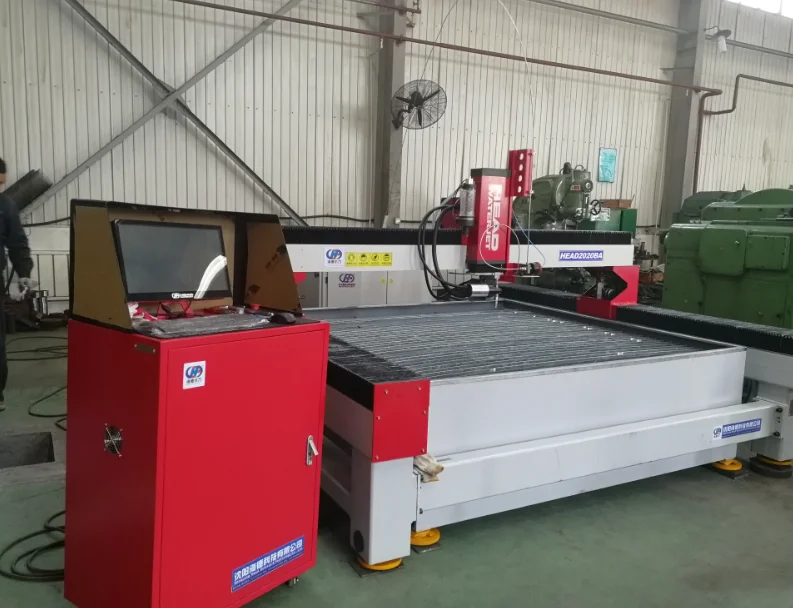

Waterjet cutting table

1) Bridge structure stability in line with international mainstream trends
2) Water tank bearing platform and frame structure, and can be customized water level adjustment function, the work area can be customized protection grating and anti-splash protection screen in line with EU regulations
3) X-axis Y-axis Z-axis using the mainstream Taiwan brand, and by the use of dust-proof cloth completely wrapped protection, dust, water, oil, sand on the rail, screw corrosion to extend the service life
4) Y Bed body structure Casting concrete structure, and by the stress release treatment, to eliminate deformation, heavyweight frame structure than similar products 30% guarantee stability accuracy, Y-axis bed design is reasonable, easy handling and transportation, rigidity, and Side support combination, the stability of the traditional structure than the 30% Z-axis dual-rail four-slider structure

High Pressure Pumps

HEAD42037Z  pumps are some of the technologically most advanced ultrahigh-pressure pumps available. In their second generation of design they feature advanced diagnostics, an improved hydraulic circuit and shifter for highly efficient pressure generation.

Dimension(L*W*H)
1530mm*1230mm*1070mm
Power rate
37kw/50hp
Max. pressure
420Mpa /4200bar
Working pressure
350-380Mpa
Max. diameter of orifice
0.33mm
Max. oil discharge
106 L/min
accumulator capacity
1.2L
Model
CNC Control System
Dimension (L*W*H)
650*460*1070mm
Weight
70KG
Power supply
AC220V 50/60Hz
Drawing system
Auto-CAD
PLC
Omron ,Japan
Servo Driver
Yaskawa ,Japan
Model
Auto abrasive delivery feeder
Weight
92KG
Max. air pressure supply
0.2Mpa
Voltage
24V
Max.capacity
200kg
feature
1.Need less than 0.2 Mpa compressed gas pressure, sand amount evenly,delivery smooth.
2.Pneumatics technology support, safe and reliable.
3.The worker can add the abrasive directly without stop the waterjet cutting machine.

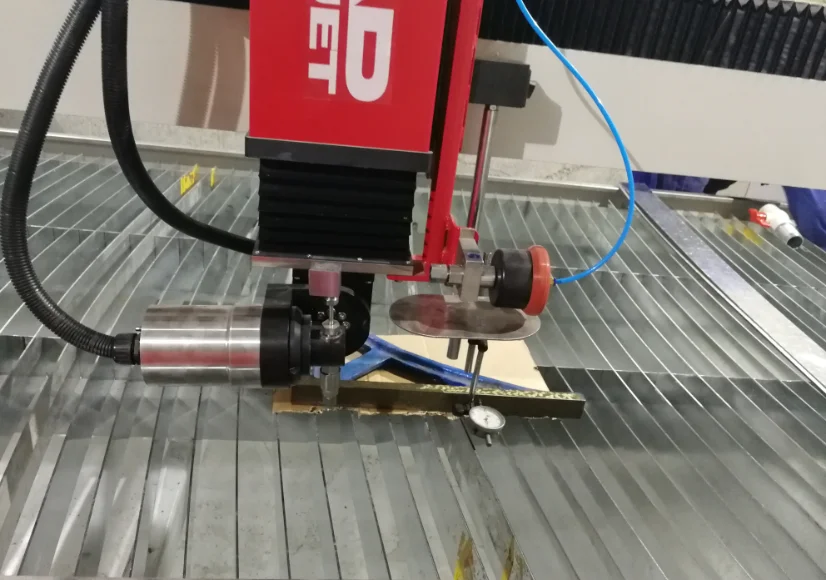

Waterjet cutting Head

1. 3-axis cutting head:consists of four main parts: pressure valve, orifice, mixing chamber and focusing tube (nozzle).  abrasive cutting heads offers a range of different combinations which makes them easy to convert and optimize for various types of cutting conditions

2. AB5-axis water jet system is the solution for high quality ceramic, marble pattern, anti tilt and metal vertical precision cutting.

3. AC5-axis cutting head enables operators to cut bevels and mitre cuts up to 45 degrees. provides the option to activate a "taper compensation" setting which offsets the taper in the water stream to accurately achieve the desired angle

Detailed Images

waterjet residual abrasive removal system

not affect normal waterjet cutting work The abrasive sand removal device can also work when the water jet cutting machine is working.put the sand suction nozzle into the waterjet tank, abrasive sand removal work can be carried out. At the same time it will not affect the completion of Desanding waterjets work properly

Traditional way to remove sand

Waterjet cutting machine stop running, expensive labor costs, low efficiency, it normally takes 2-3 days to complete

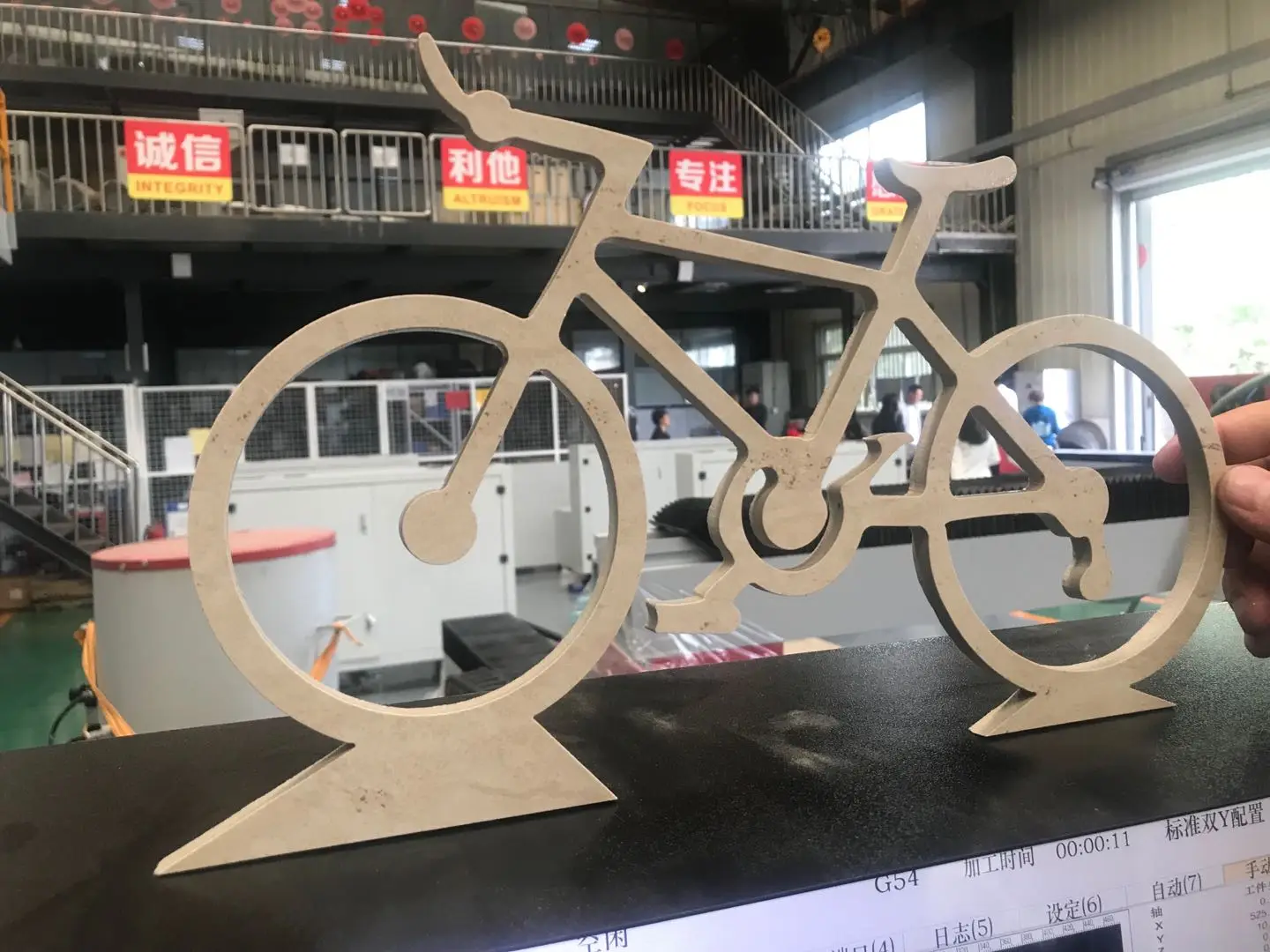

Cutting sample

Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.

About our company

>>>Brief Introduction Of HEAD waterjet company

HEAD water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning China, with more than 15 years full experience and a professional sales team.HEAD water jet, so cutting is no longer a problem!

Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

>>View of Company honor

Part of Workshop

Office

Service & FAQ

>>>Try to Read This -------Our Service

1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.

Keep safety

Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.

Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.


why choose HEAD water jet

1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder
