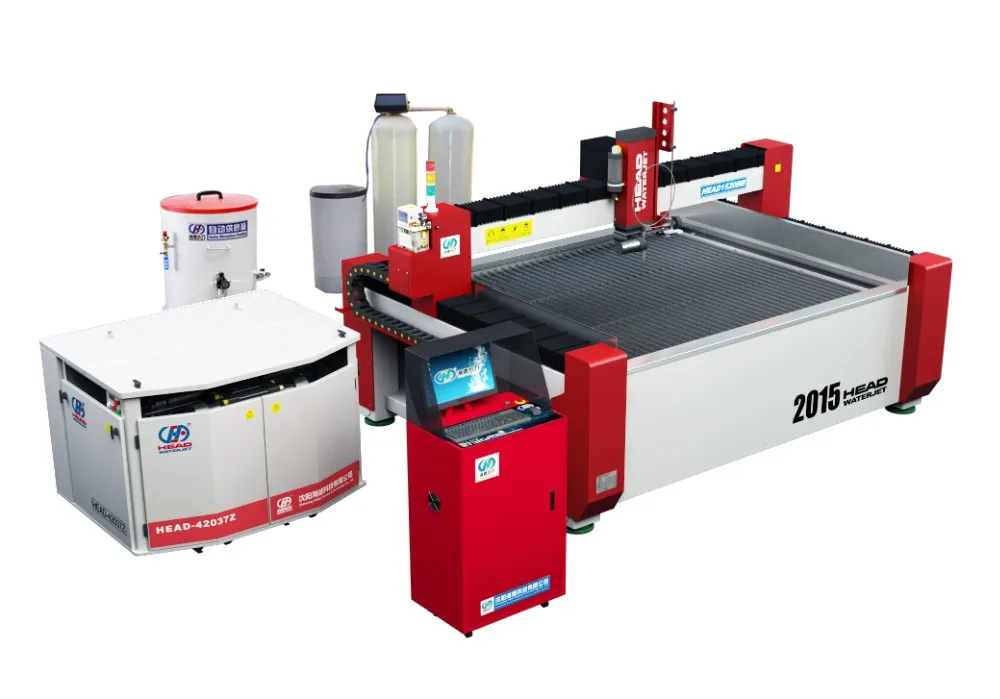

high pressure waterjet tile ceramic machine factory price

  • 1 - 1 Sets
    $35,500.00
  • >=2 Sets
    $34,900.00
Model Number:
HEAD2015BA/HEAD42037Z
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
High
Power(W):
37KW
Type:
Stone Cutting Machine
Certification:
CE
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Condition:
New
Use:
Granite
Place of Origin:
Liaoning, China
Brand Name:
HEAD
Voltage:
380V
Dimension(L*W*H):
as to model details
Weight:
5300-6000kg
Key Selling Points:
High-accuracy
After-sales Service Provided:
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Intensifier:
USA
Shift mode:
Electrical shift
PLC:
Omron
pressure:
420Mpa
Power supply:
380V/50HZ
Ball screw:
ABBA
Linear guide:
ABBA
Max water discharge:
3.8L/min
Cutting materials:
Stone Marble Granite Tile
Warranty:
one year
Supply Ability
Supply Ability:
30 Set/Sets per Month high pressure waterjet tile ceramic machine factory price
Packaging & Delivery
Packaging Details
high pressure waterjet tile ceramic machine factory price
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box with iron binding belt.
4. Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
Port
Dalian China high pressure waterjet tile ceramic machine factory price
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Abrasive waterjet cutting machines efficiently cut stone, marble, ceramics, porcelain and tile. Waterjet cutting is ideal for the insertion of inlays, and logos for stone and tile applications, as the process effectively maximizes performance, reduces cost and increases profit.

HEAD 5 axis water jet cutting  use proven technology to deliver the highest production rates and workshop efficiencies for stone fabricators. For Nexus owners, this means more kitchens per week with less operating hours and a lower cost per kitchen.

Product description:

Keeping track of latest market development we are actively engaged in offering CNC Water Jet Cutting Machine. Widely used for cutting soft & hard materials, the offered jet cutting machine is good demand in the market for its high performance. In order to assure the quality, the complete range of jet cutting machine is checked on numerous parameters before the final delivery at the customer's end. The offered jet cutting machine is provided with different specifications at affordable price

Features:

• 50 HP High  420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.
• Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting heads
1-10 cutting heads (1 for standard machine)
Detailed Images

waterjet residual abrasive removal system

not affect normal waterjet cutting work The abrasive sand removal device can also work when the water jet cutting machine is working.put the sand suction nozzle into the waterjet tank, abrasive sand removal work can be carried out. At the same time it will not affect the completion of Desanding waterjets work properly

Traditional way to remove sand

Waterjet cutting machine stop running, expensive labor costs, low efficiency, it normally takes 2-3 days to complete

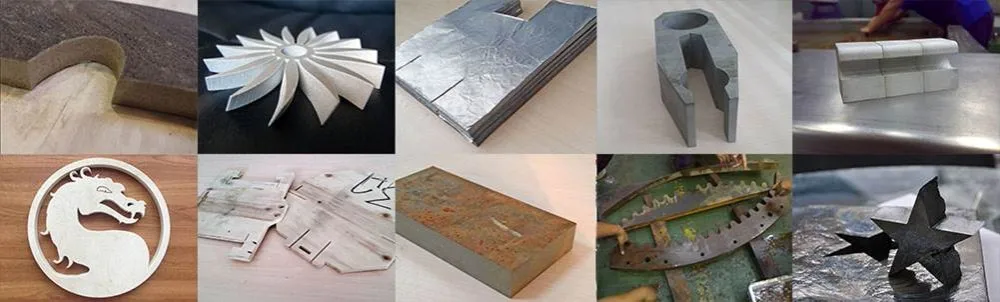

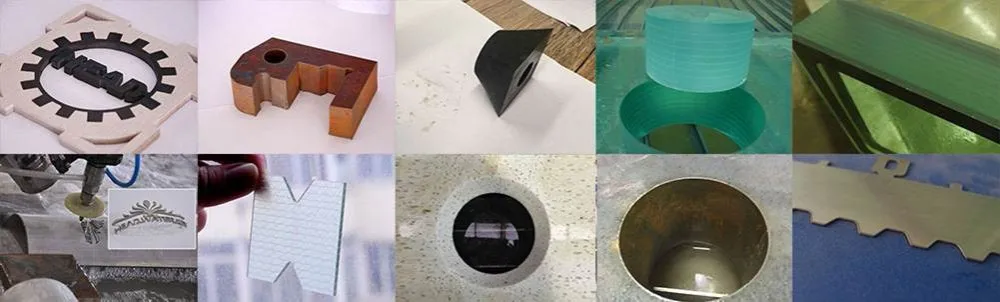

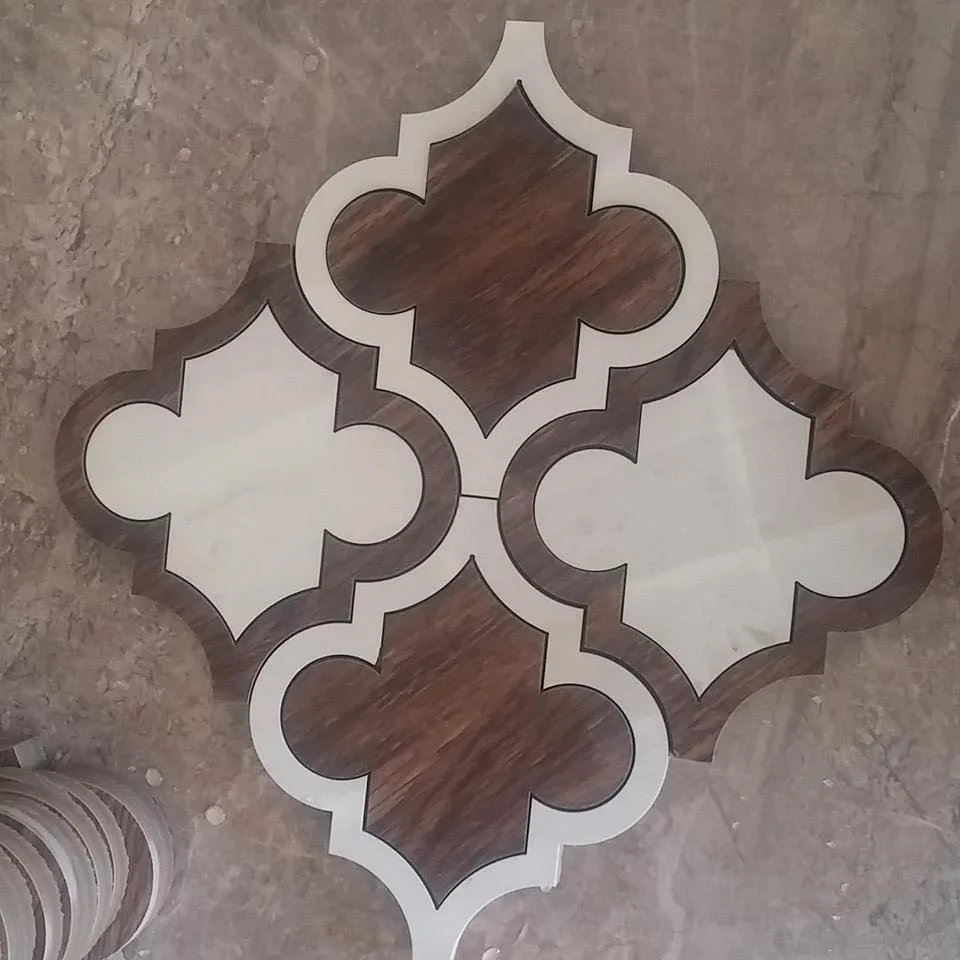

Cutting sample

Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.

Service & FAQ

>>>Try to Read This -------Our Service

1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of speed?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.

Why Choose Waterjet
The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials.

Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.

Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.


why choose HEAD water jet

1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder

Transaction Details
About our company

>>>Brief Introduction Of HEAD waterjet company

HEAD water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning China, with more than 15 years full experience and a professional sales team.HEAD water jet, so cutting is no longer a problem!

Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

>>View of Company honor

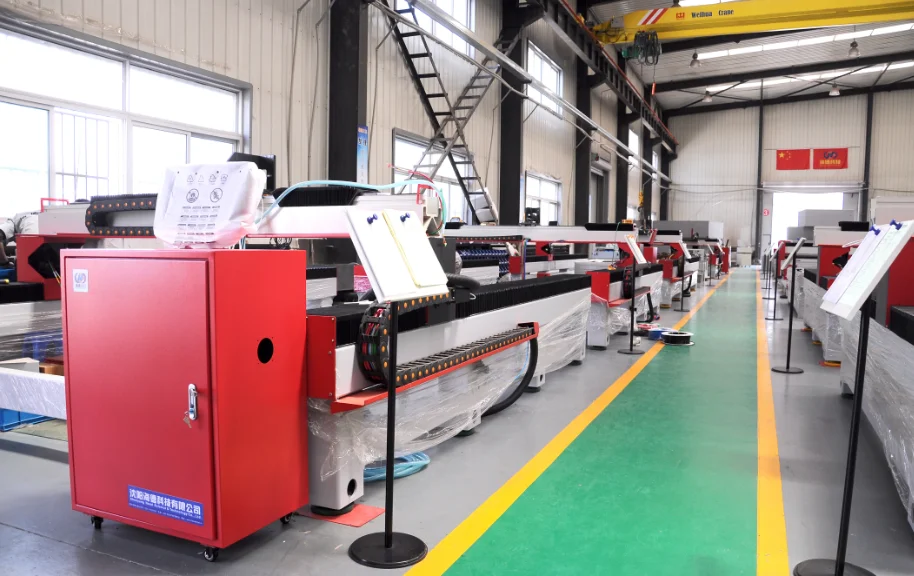

Part of Workshop

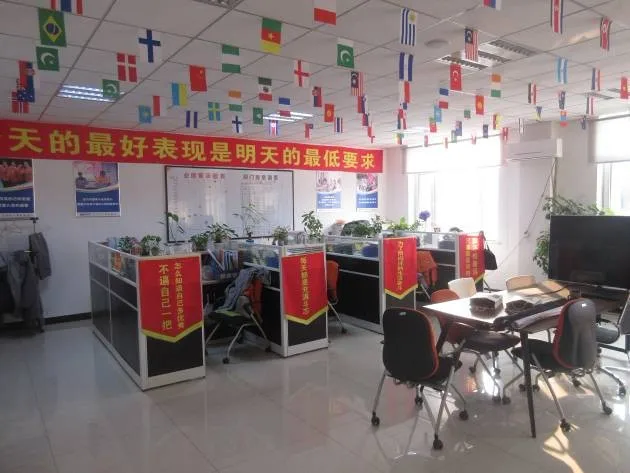

Office

Packing & Delivery

Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.


Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.

HEAD WATER JET MAKES CUTTING IS NO LONGER PROBLEM !
