chinese water jet cutting machines on sale

FOB Reference Price:Get Latest Price
$35,000.00 - $100,000.00 / Set | 1 Set/Sets chinese water jet cutting machines price (Min. Order)
Model Number:
HEAD4020BA/HD42037Z
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
12 Months
Place of Origin:
Liaoning, China
Brand Name:
HEAD
Condition:
New, New
Dimension(L*W*H):
Machine Model
Certification:
CE ISO
Rated Power:
37KW
Voltage:
380V 220V Optional, 380V
After-sales Service Provided:
Engineers available to service machinery overseas
Control accuracy:
0.01mm
Max water discharge:
3.8L/min
Certificate:
CE
Cutting accuracy:
0.1mm
Continuous operating pressure:
370--390mpa
Max orifice diameter:
0.35mm
Color:
Red and white
Servo:
YASKAWA
Weight:
4300-5800KG
Supply Ability
Supply Ability:
25 Set/Sets per Month chinese water jet cutting machines price

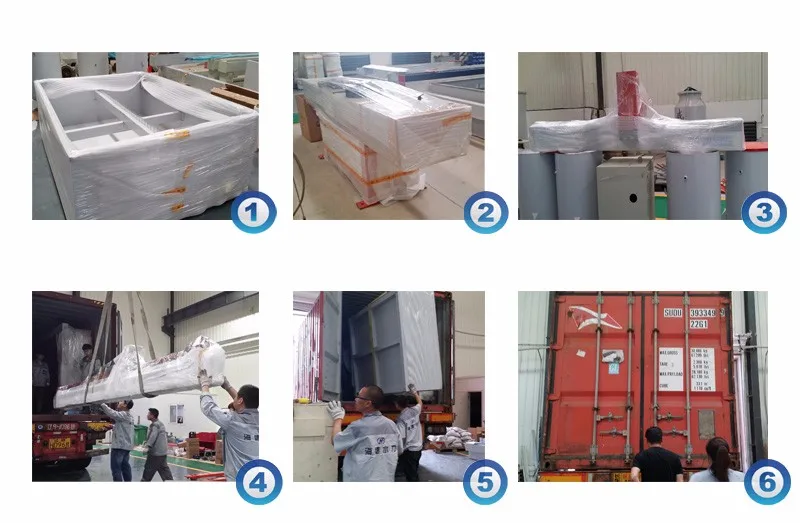

Packaging & Delivery
Packaging Details
chinese water jet cutting machines price1. Full film packaging machine;
2. Collision avoidance;
3. Free fumigation plywood wooden box with metal straps.
4. Our wooden box was fumigated. No need for wood inspection, save transportation time.
Port
dalian port chinese water jet cutting machines price
Video Description
Product Description


Product description:

Keeping track of latest market development we are actively engaged in offering CNC Water Jet Cutting Machine. Widely used for cutting soft & hard materials, the offered jet cutting machine is good demand in the market for its high performance. In order to assure the quality, the complete range of jet cutting machine is checked on numerous parameters before the final delivery at the customer's end. The offered jet cutting machine is provided with different specifications at affordable price

Features:

• 50 HP High  420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "Made in USA".
• User friendly & minimum maintenance cutting head design with USA make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (made in Japan). Which gives you trouble free operation & long life of parts.
• Only Water Jet Cutting Machine comes with Ball Screw and rail slider of X, Y axis is designed as oil immersion type which reduces friction, wear and prevents metal corrosion, gives you zero maintenance & very long life of Ball Screw & Rails.

SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting heads
1-10 cutting heads (1 for standard machine)
Model
HEAD-5AC
A-axis Rotation angle
±70degree
C-axis Rotation angle
±360degree
Products Show

High Pressure Pumps

HEAD42037Z  pumps are some of the technologically most advanced ultrahigh-pressure pumps available. In their second generation of design they feature advanced diagnostics, an improved hydraulic circuit and shifter for highly efficient pressure generation.

Dimension(L*W*H)
1530mm*1230mm*1070mm
Power rate
37kw/50hp
Max. pressure
420Mpa /4200bar
Working pressure
350-380Mpa
Max. diameter of orifice
0.33mm
Max. oil discharge
106 L/min
accumulator capacity
1.2L

420mpa/55,000 psi is delivered by one intensifier, thus delivering low maintenance costs and quieter operation.CNC controller provides operators an instant snapshot of all key pump operating conditions, in addition to tracking HP seal life and key operating parameters.Sensors ensure continual and adequate flow of water to protect your system. Switches between high pressure cutting and low pressure piercing for brittle materials

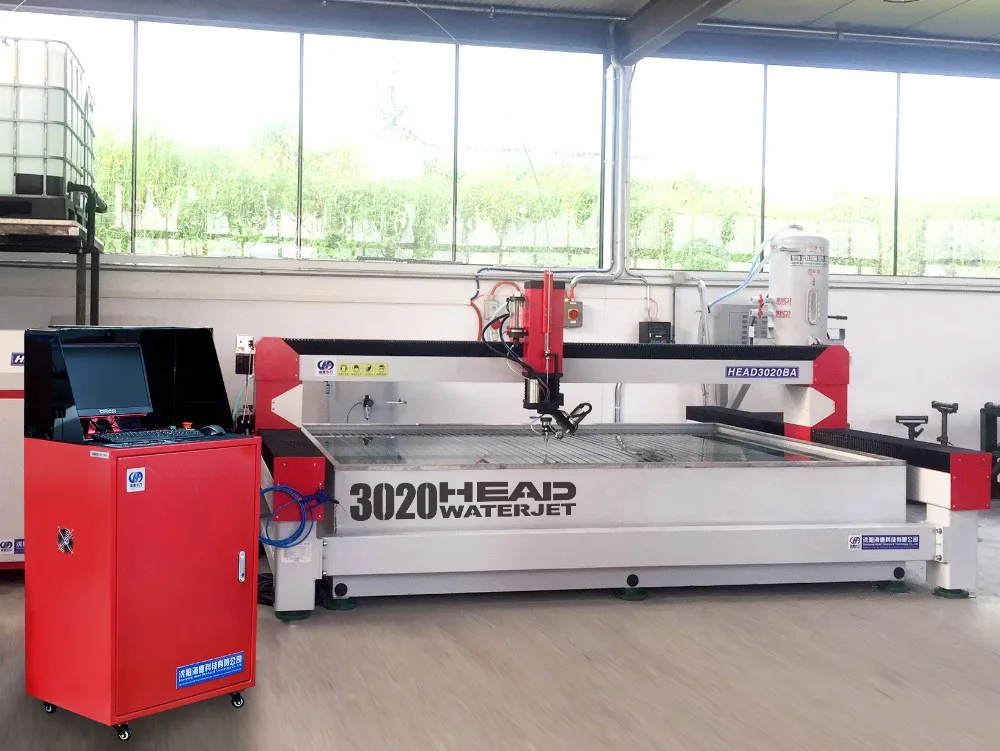

Waterjet cutting table

1) Bridge structure stability in line with international mainstream trends
2) Water tank bearing platform and frame structure, and can be customized water level adjustment function, the work area can be customized protection grating and anti-splash protection screen in line with EU regulations
3) X-axis Y-axis Z-axis using the mainstream Taiwan brand, and by the use of dust-proof cloth completely wrapped protection, dust, water, oil, sand on the rail, screw corrosion to extend the service life
4) Y Bed body structure Casting concrete structure, and by the stress release treatment, to eliminate deformation, heavyweight frame structure than similar products 30% guarantee stability accuracy, Y-axis bed design is reasonable, easy handling and transportation, rigidity, and Side support combination, the stability of the traditional structure than the 30% Z-axis dual-rail four-slider structure

Type
2015
2040
3020
4020
Max.cutting range(mm)
2000*1500mm
2000*4000mm
3000*2000mm
4000*2000mm
Travel of Z axis
150mm
Servo system
YASKAWA
Control accuracy
±0.01mm
Cutting accuracy
±0.1mm
Re-positioning accuracy
±0.025mm/m
Max. moving speed
6000mm/min
Model
CNC Control System
Dimension (L*W*H)
650*460*1070mm
Weight
70KG
Power supply
AC220V 50/60Hz
Drawing system
Auto-CAD
PLC
Omron ,Japan
Servo Driver
Yaskawa ,Japan
Model
Auto abrasive delivery feeder
Weight
92KG
Max. air pressure supply
0.2Mpa
Voltage
24V
Max.capacity
200kg
feature
1.Need less than 0.2 Mpa compressed gas pressure, sand amount evenly,delivery smooth.
2.Pneumatics technology support, safe and reliable.
3.The worker can add the abrasive directly without stop the waterjet cutting machine.

Waterjet cutting Head

1. 3-axis cutting head:consists of four main parts: pressure valve, orifice, mixing chamber and focusing tube (nozzle).  abrasive cutting heads offers a range of different combinations which makes them easy to convert and optimize for various types of cutting conditions

2. AB5-axis water jet system is the solution for high quality ceramic, marble pattern, anti tilt and metal vertical precision cutting.

3. AC5-axis cutting head enables operators to cut bevels and mitre cuts up to 45 degrees. provides the option to activate a "taper compensation" setting which offsets the taper in the water stream to accurately achieve the desired angle

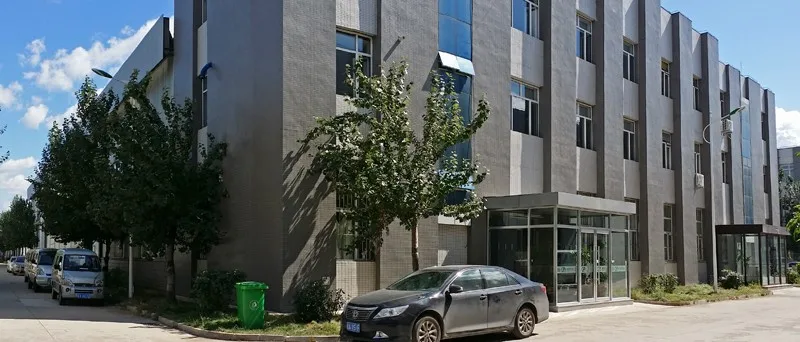

Our Company

Shenyang Head Science Technology Co. is specialized in designing, researching and developing, manufacturing Ultra High Pressure (UHP) Waterjet Cutting Systems and relative parts.With more than ten years development, We have more than 20 series of self-developed designs and molds, and achieve several patents on waterjet cutting machine (201020578425.8-Circular UHP Intensifier for Waterjet Cutters or Water Cleaners, and 201120115666.3-Gradient Compensation Cutting Unit for CNC UHP Waterjet Cutters). Now we become a top-ranking enterprises and Our" HEAD" brand waterjet cutting machines have been recognized internationally.


As concentrated, so professional!!

"First Quality, High Efficiency, Considerate Services" is our consistent business principle. Welcome you to contact us freely and visit our factory. We sincerely hope to create and share success with all clients.

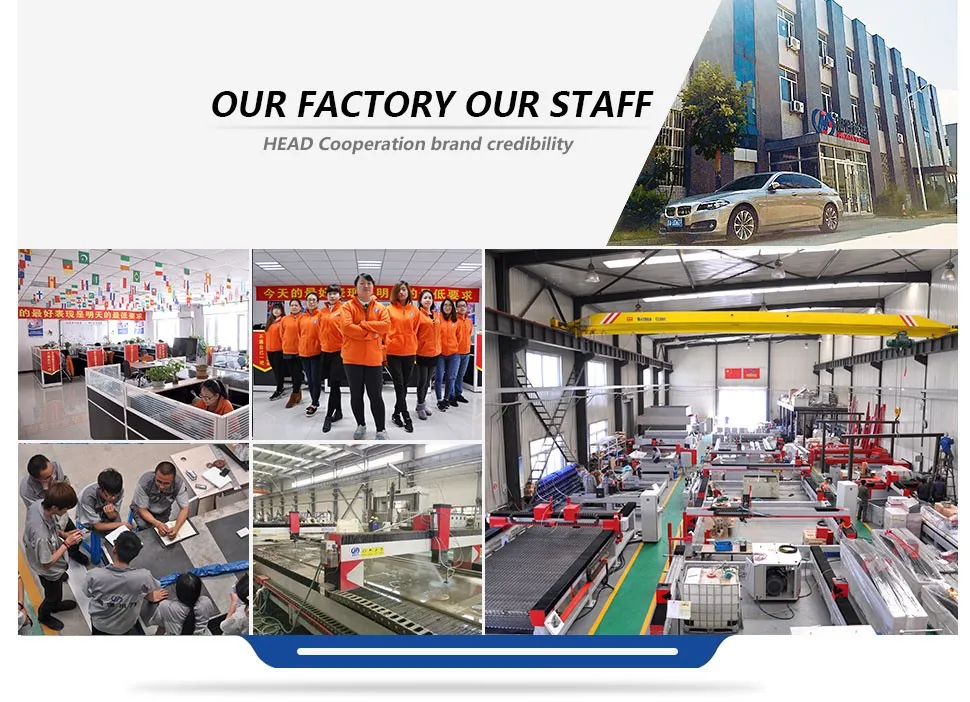

Our Workshop

Our Team


Product Text

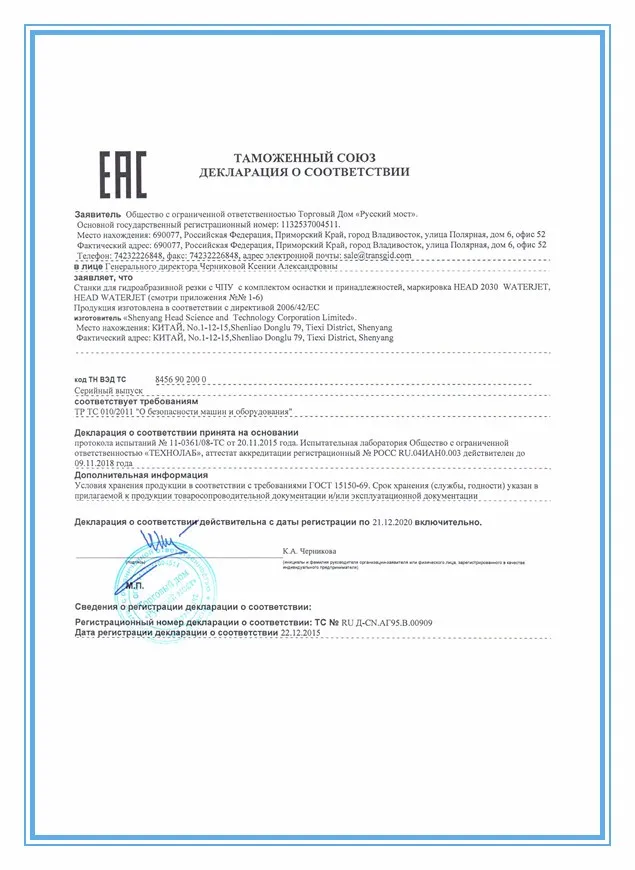

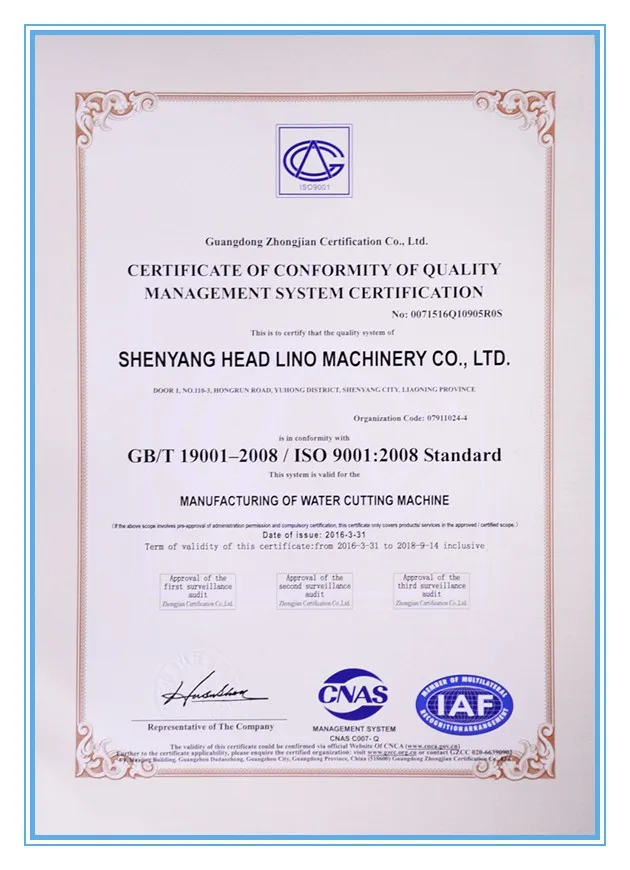

Our Certifications

H--E--A--D

:  HIGH PRESSURE:  Waterjet continuous working pressure can be over 390MPa.
E:   EFFICIENT:   Easy to operate, no need special clamps on the workpieces, can cut any shapes and drill any curve with
out mould, if with other processing devices (such as drill bit), the workpieces utilization ratio will be optimized at most.
A:  ALL-POWERFUL:  Waterjet cutting is with the widest applicable range, which can cut more than 500 materials, compound materials, plastics, ceramics, glass, stone, glass fiber, reinforced plastic, aluminum, cooper, carbon steel, alloy steel, stainless steel, etc.
D:  DIFFERENT:   Cold cutting, no heat, no arc marks in the edge, no second processing, easy for reprocessing. It's the best way to cut the materials which are afraid of heat.
Transaction Details

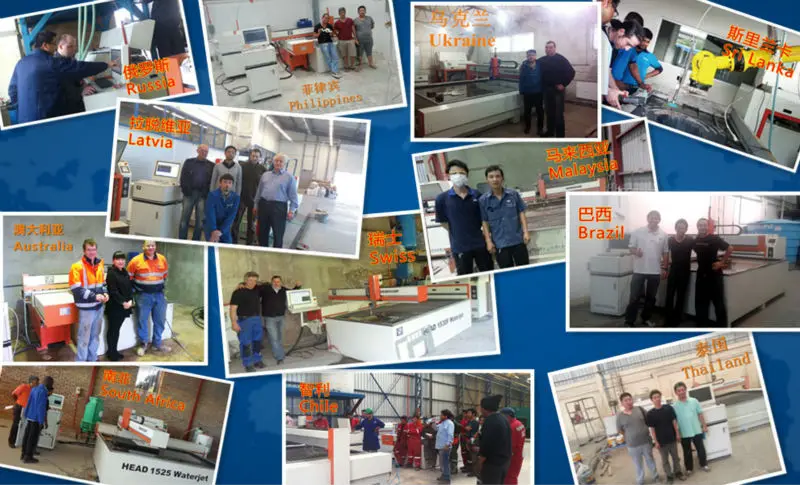

Customer Photo
Packing & Delivery

Packing Details  :  Soft Packing, customized according to  requirements

Delivery Details : 30 days after order
